Adjustable alignment
Top-access clamping supports controlled glass height and lateral alignment during installation.
systems /
Base Shoe / U-Channel
A continuous, minimal foundation for uninterrupted glass and open views.
System focus / 01
Adjustable base shoe, resolved from profile to glass.
A representative continuous aluminum channel designed around accessible clamping, controlled alignment and coordinated finishing parts.
80 mmProfile width
110 mmProfile height
Reference configuration only. Glass make-up, anchors, drainage, lighting and structural details require project review.
- 01 Laminated safety glass
- 02 Glazing gasket
- 03 Adjustable clamping insert
- 04 Aluminum base profile
- 05 Finish cover
- 06 Project-selected anchors
02 / Engineering detail
Engineered around the installation.
Adjustment, water management, optional lighting and coordinated components are considered as one system.
Drainage planning
Profile and project-side water paths are coordinated with the slab, waterproofing and outlet strategy.
Optional integrated LED
Selected base-shoe and handrail configurations can accommodate serviceable architectural lighting.
Coordinated kit
Profiles, clamping elements, covers, anchors and compatible fittings are prepared as one supply package.
Water needs a designed path.
Drainage is coordinated with the profile, slab edge, waterproofing layer and project outlet rather than treated as an isolated product claim.
Internal profile path
Water entering the channel is directed toward coordinated drainage points in the profile.
Project-side discharge
The surrounding balcony or terrace build-up provides the controlled route to the approved outlet.
Installation reference

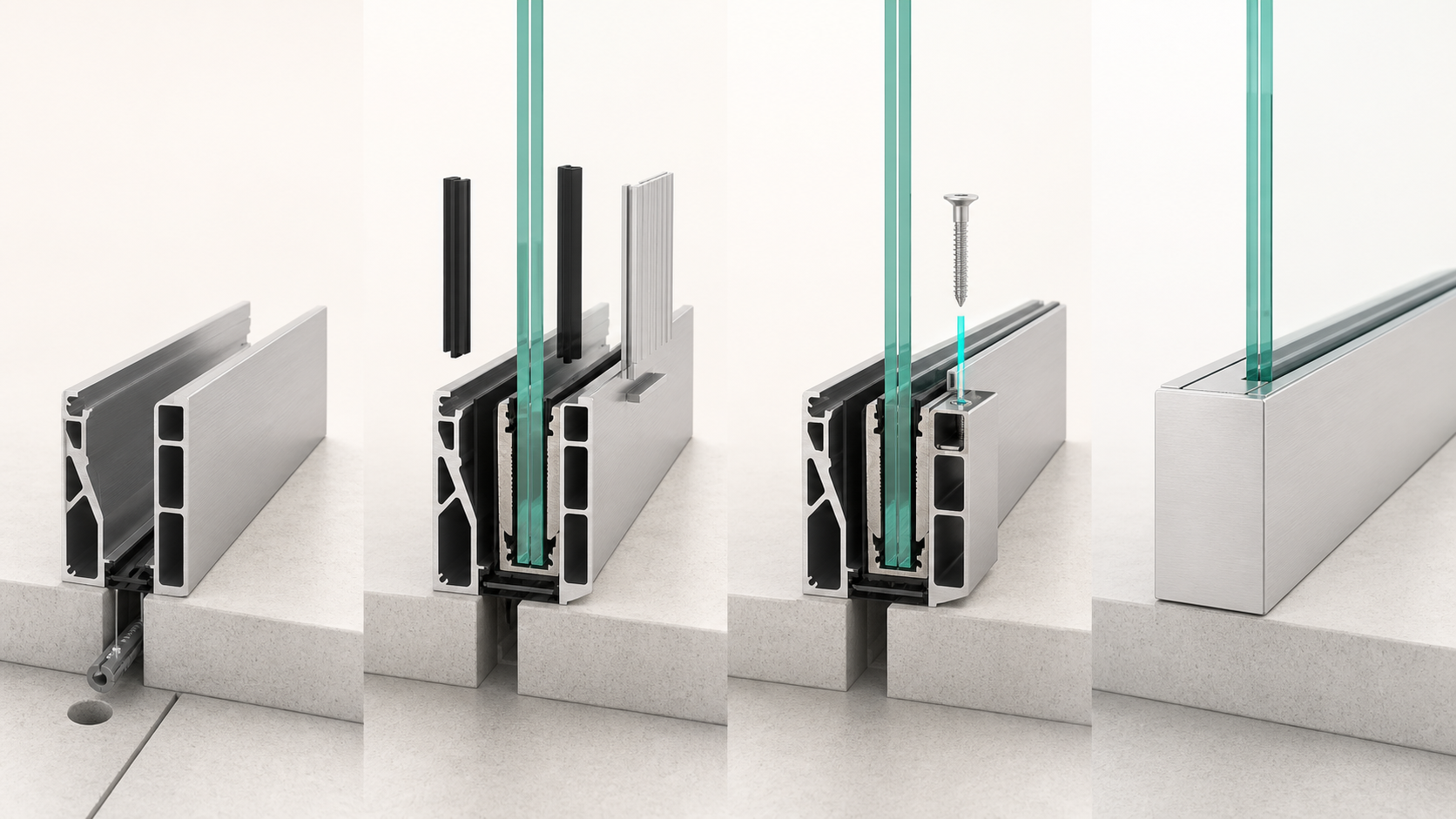

Four moves. One clear sequence.
- 01
Prepare the profile
Set out, fix and prepare the channel around the approved substrate and water-management details.
- 02
Position the glass
Place the support elements, gaskets and laminated glass in the referenced assembly order.
- 03
Align and clamp
Coordinate panel height and lateral alignment before tightening the top-access clamping system.
- 04
Finish and inspect
Fit covers, confirm joints and drainage paths, then complete the project-specific inspection.
Product in motion
Base-shoe adjustment in focus
ZR / Project supply
Designed as part of the whole.
Base Shoe / U-Channel is supplied as part of a coordinated glass railing package. Glass make-up, fixing hardware, finish, packing and export documentation are aligned to the application and confirmed during project review.
Illustrative concept — final technical specifications require project review.
Get a quote
